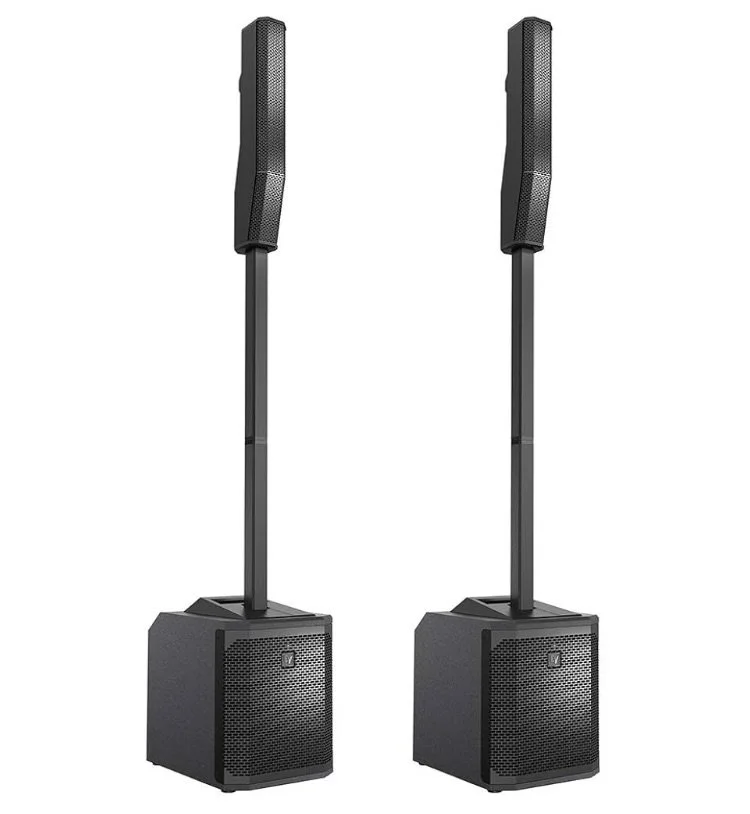

Evolve 30Ms

  • Brand
    Electro-Voice

  • Connectivity Technology
    Bluetooth

  • Mounting Type
    Freestanding

    SPECIFICATIONS

  • Frequency response (-3 dB)151 Hz to 20 KHz)

  • Frequency range (-10 dB)145 Hz to 20 KHz)

  • Maximum SPL: 2123 dB

  • Coverage: (H x V)120° x 40°

  • Amplifier rating: 1000 W

  • LF channel rating: 500 W

  • HF channel rating: 500 W

  • Crossover frequency: 200 Hz

  • Connectors:

    4x XLR/TRS Combo Jack Line / Mic Input
    1x 1/4" TRS HI-Z input
    2x XLR/TRS Combo Jack for Stereo Line Input
    1x Stereo RCA Input
    1x 3.5 mm Stereo Input
    1x Wireless Stereo Bluetooth® Audio Input
    1x 1/4" Foot Switch Input
    1x XLR MIX OUT Output
    1x XLR AUX OUT Output

  • Enclosure Sub:

    15 mm plywood
    Column: Composite
    Pole: Aluminum
    Grille: Steel with black coat

  • Color: Black

  • Dimensions (HxWxD): mm (in):

    Sub: 448 x 332 x 432 (17.6 x 13.1 x 17)
    Column: 620 x 95 x 157 (24.4 x 3.7 x 6.2)
    Pole (2 pcs): 600 x 48 x 55 (23.6 x 1.9 x 2.2)

  • Net weight

    Sub: 34.9 lb (15.8 kg)
    Column: 6.0 lb (2.7 kg)
    Pole (2 pcs): 3.1 lb (1.4 kg)
    Bag for column and pole: 1.9 (0.85 kg)

  • Power consumption: 100-240 V AC, 50-60 Hz, 1.5-0.6 A
